Google Cloud’s Vision API allows you to use the Vertex AI Vision environment to build and manage applications. Vision also uses machine learning models to process and interpret images. In Glide, you can use the Google Cloud Vision integration to extract text from PDFs and image files.
Don't see the Google Cloud Vision integration?
Adding and Configuring the Integration
To start using the Google Cloud Vision integration, you first need to add it to your project.
- In Glide, click the Settings icon in the upper-right corner.

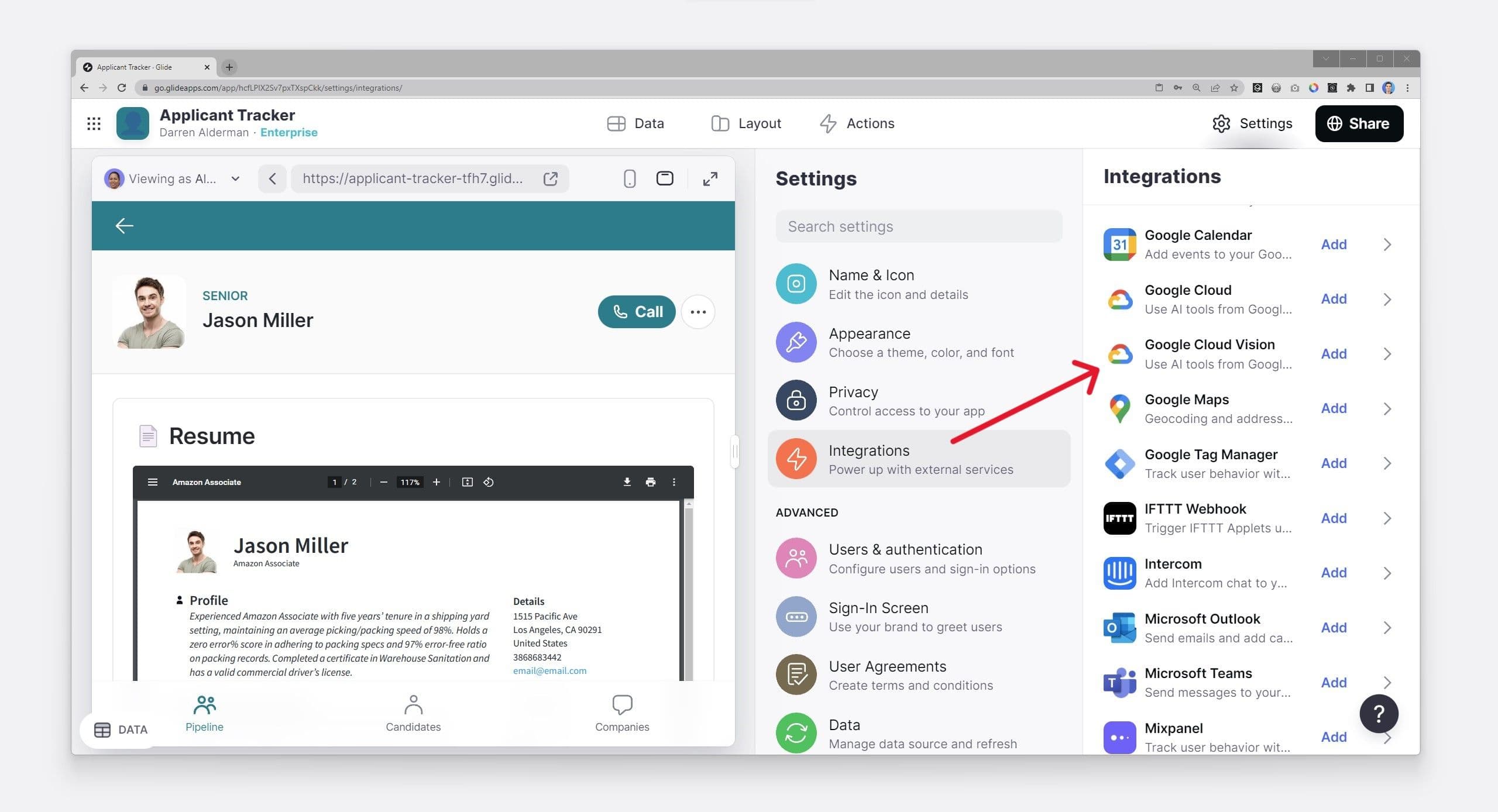

- Navigate to the Integrations tab and then select Google Cloud Vision .
- Click the Add button

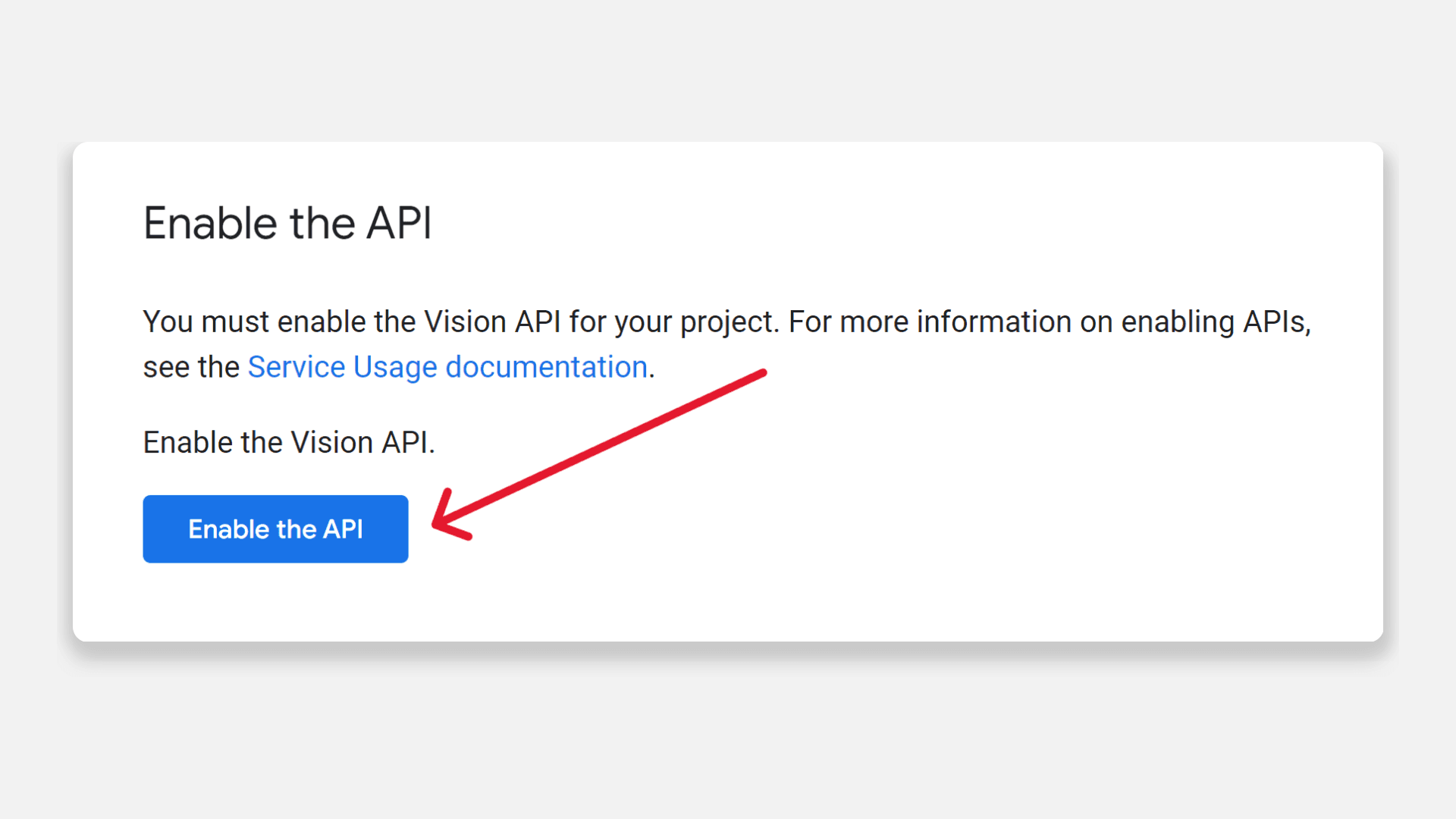

- Enable the Vision API on your Google Cloud Project.

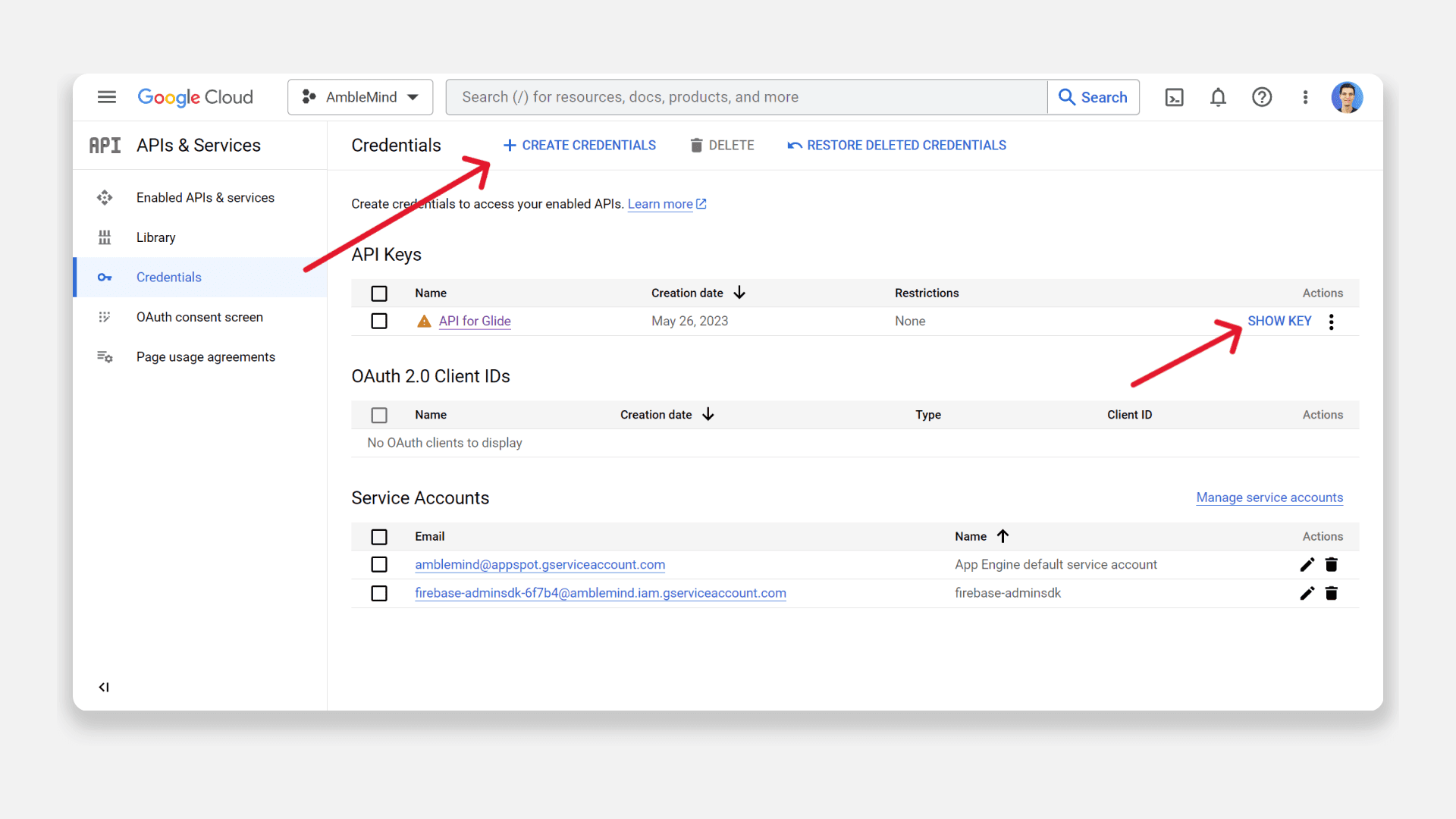

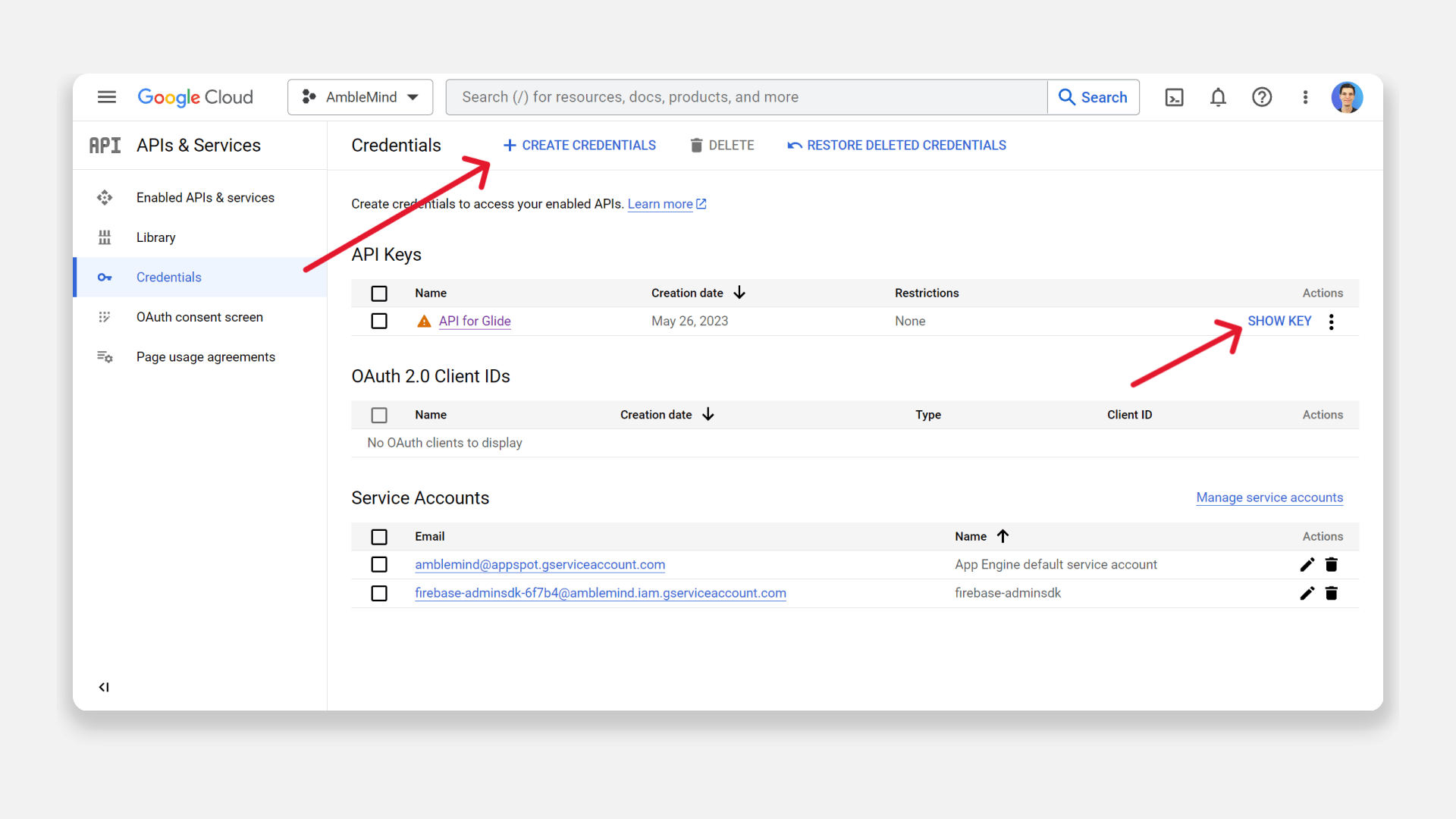

- Navigate to your Google Cloud Console API Credentials.
- Create and copy a new API Key for Glide.

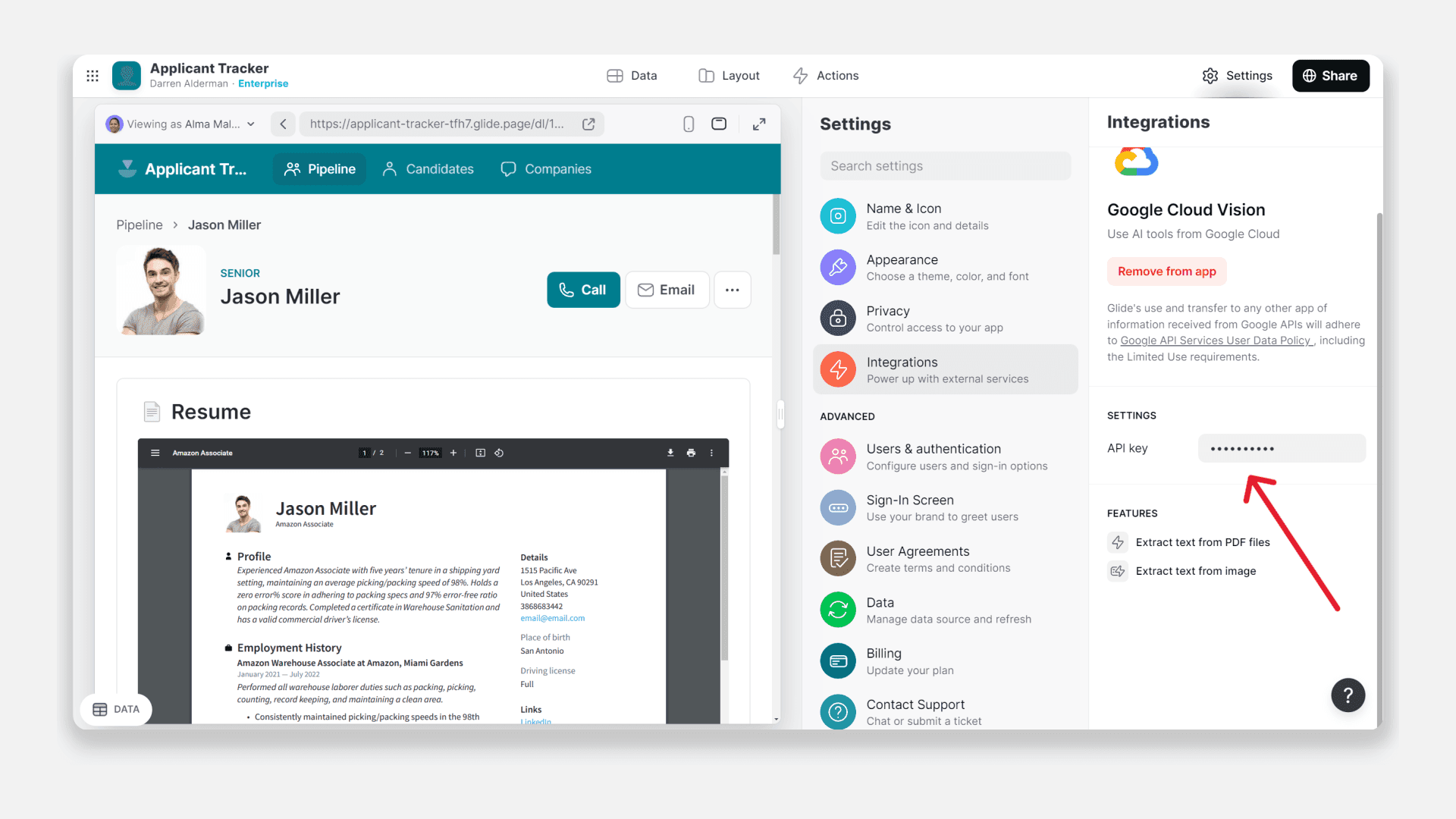

- Back in Glide, add your API Key in your Google Cloud Vision integration settings.
.png)
.png)
Features
The Google Cloud Vision integration in Glide currently supports two features:
- Extract text from PDF files
- Extract text from image
Extract text from PDF files

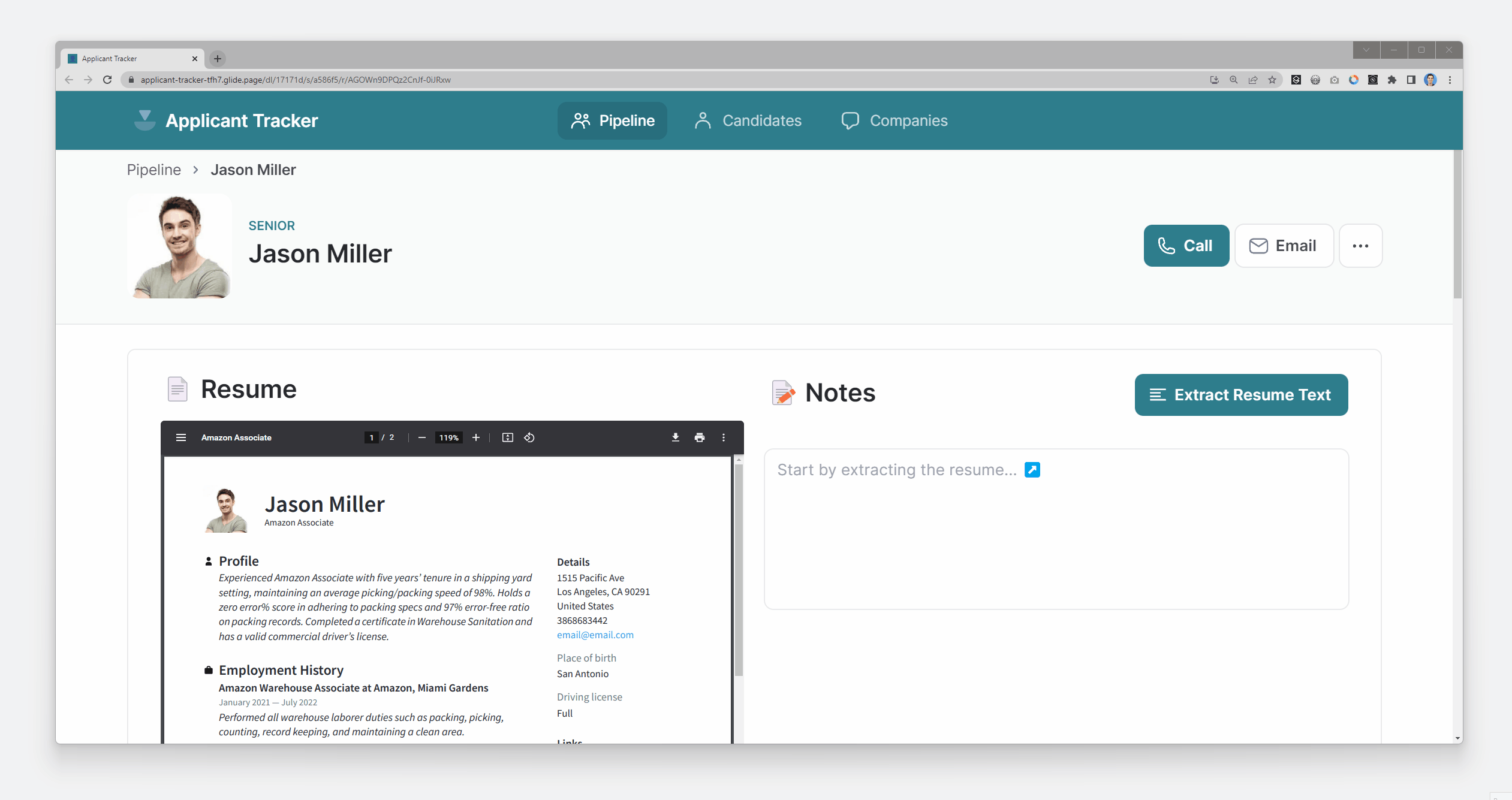

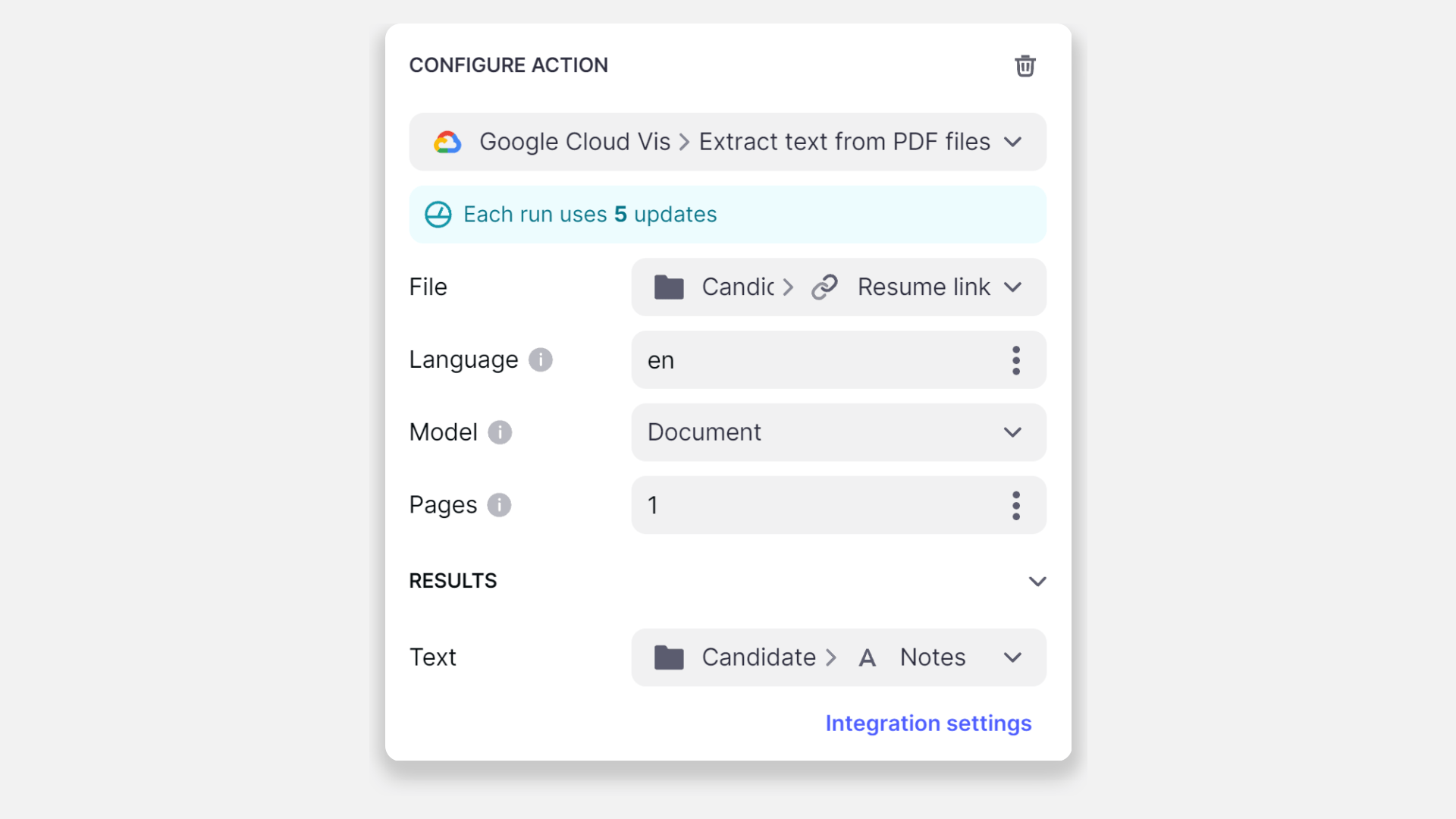

The Extract text from PDF files feature lets you select a PDF file, and Google Cloud Vision will extract text from the document. You can then use that text in your app.
The action can be added to a Component that supports Actions (e.g., a Button component), added to an action sequence in the Action Editor.

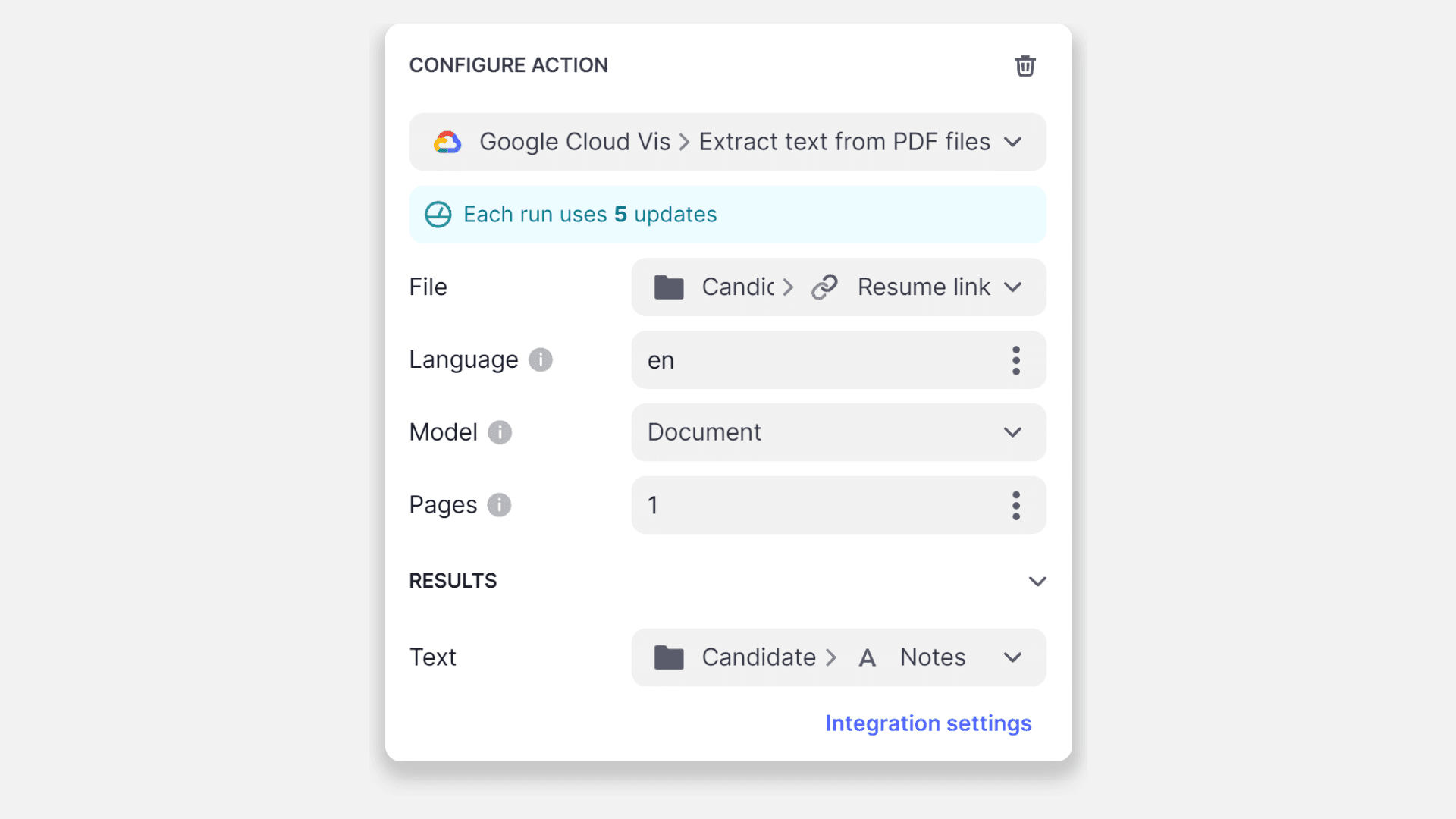

Below is a table outlining the different settings:
| Field | Description | Required field? | Example |
|---|---|---|---|
| File | A link to the PDF | ✅ | |
| Language | The language of the text | ❌ | en |
| Model | The Vision model to process the document through | ✅ | Document |
| Pages | The pages to extract text from | ❌ | 1-3,5,7-* |
| Text | Where the extracted text should be stored. | ✅ |
A note on page selection: You may select a range of pages separated by a comma (for example, 1-3,5,7-9 will extract text from pages 1,2,3,5,7,8,9) or use * to select all pages.
Extract text from image

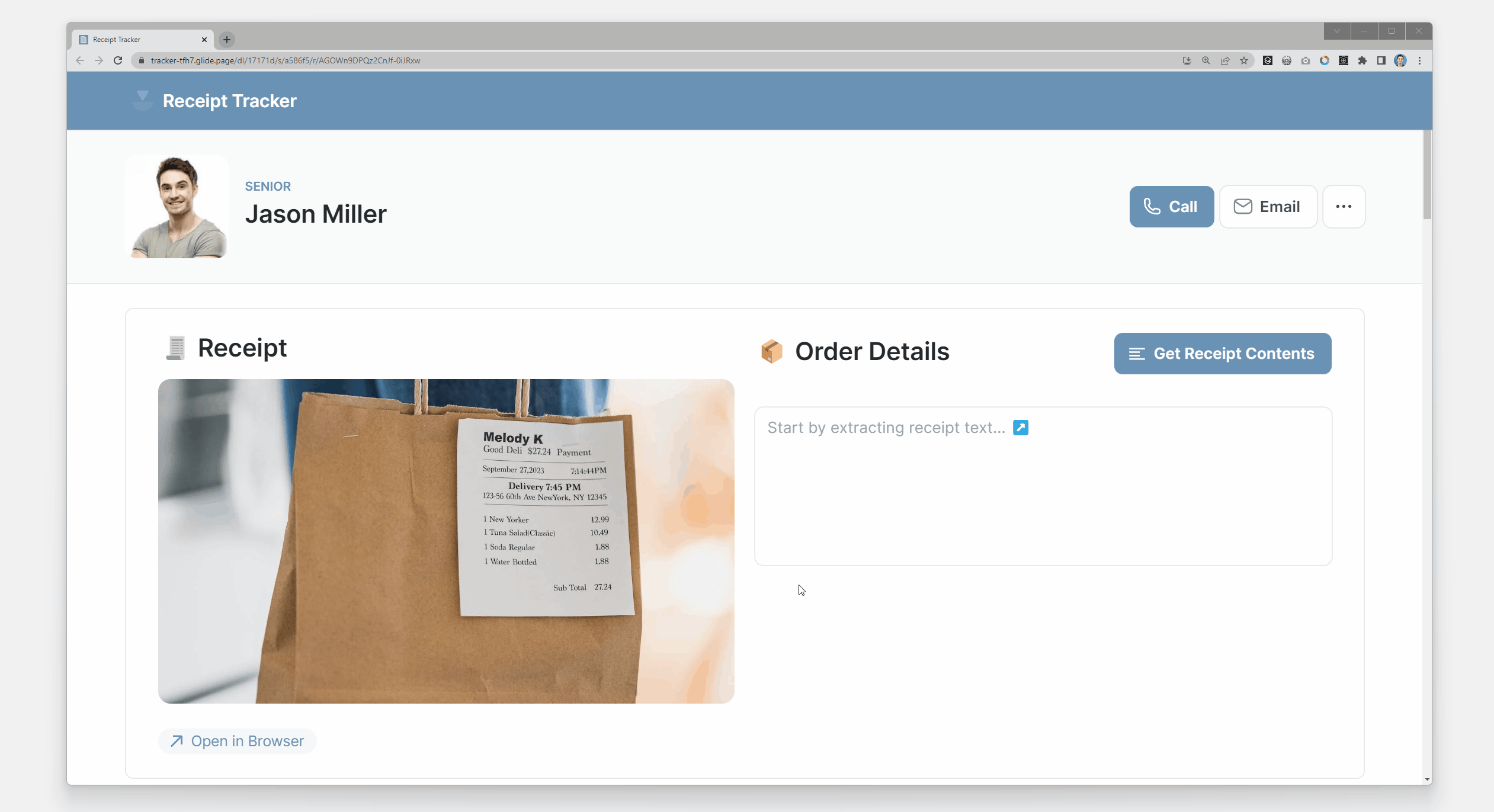

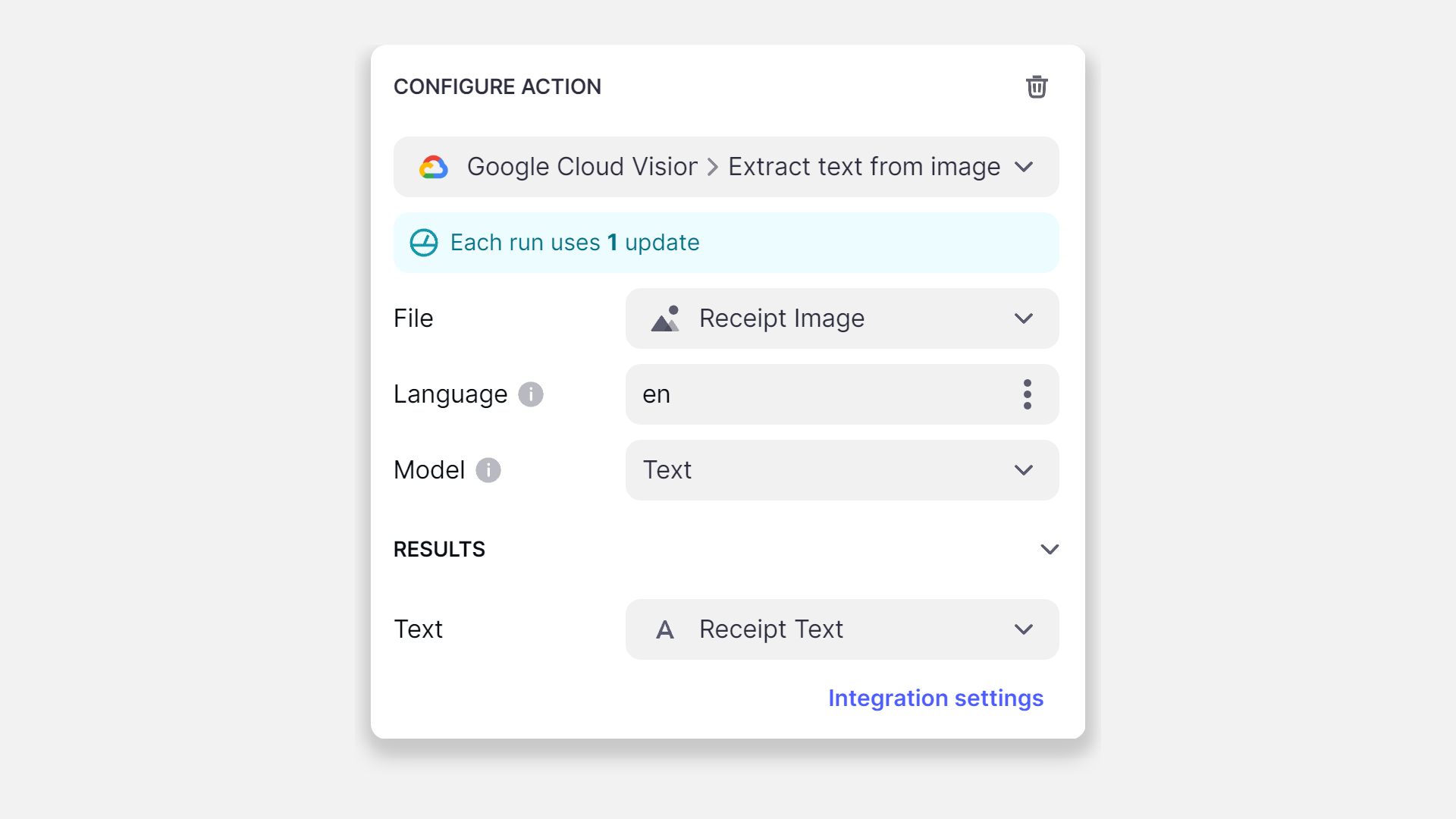

The Extract text from image feature will extract text from an image. For example, you could extract the text from a picture of a receipt:
The action can be added to a Component that supports Actions (e.g., a Button component), added to an action sequence in the Action Editor, or added as a Computed Column.

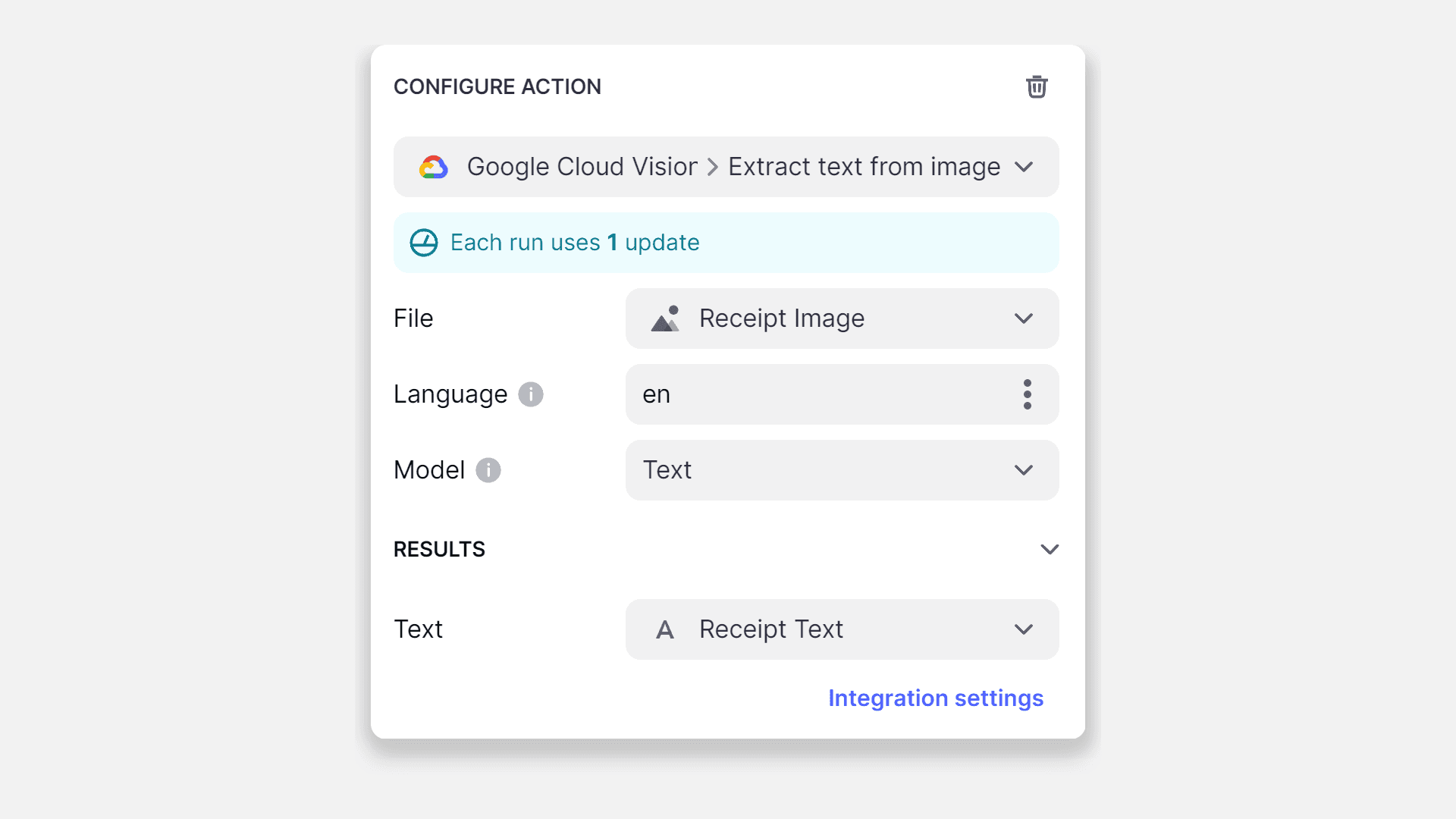

Below is a table outlining the different settings:
| Field | Description | Required field? | Example |
|---|---|---|---|
| File | A link to the image you want to extract text from | ✅ | |
| Language | The language the text is in | ❌ | en |
| Model | The Vision model to process the image through | ✅ | Text |
| Text | The field where Glide should store the text. | ✅ |
To learn more generally about Integrations in Glide, including how they affect your app’s usage, check out our Introduction to Integrations.
